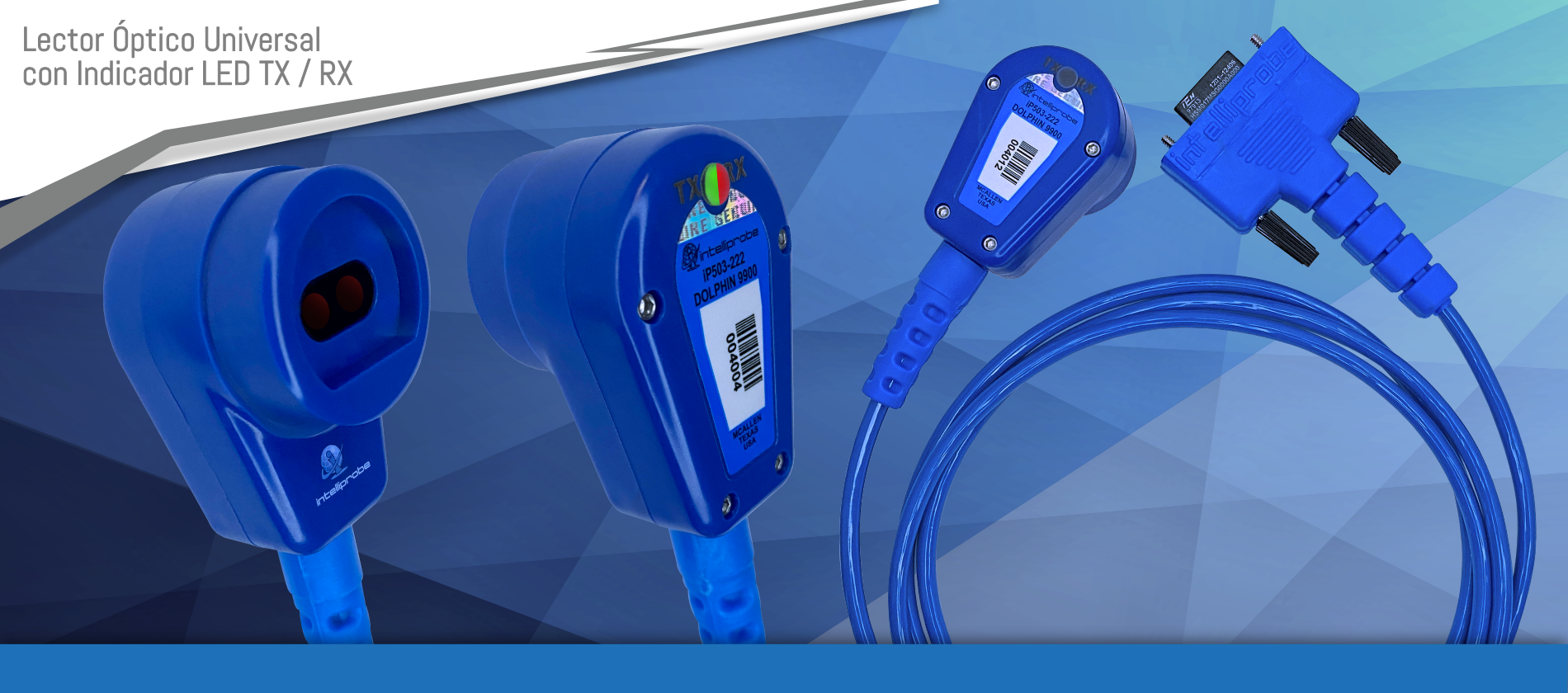

iP503-222 ‘2S’ ANSI Optical Probe (Honeywell Dolphin 9900) NEW PRODUCT

OVERVIEW

The NEW iP503-222 ‘2S’ ANSI Universal Optical Probes are designed for reading and programming ANSI electrical power meters.Their new design features a Bi-Color LED on the probe cover to indicate the TX and RX communication signals that turn RED and GREEN, respectively, while communicating with the meter.In addition, they incorporate a new smaller housing design that make them even lighter weight but still rugged with their Polycarbonate Glass Fiber Reinforcement material.

These probes are configured for use with the Honeywell Dolphin 9900 handheld computers.Their optical circuitry supports ANSI C12.18-1996 or 2006 communication protocols.The design features make them universally compatible to read virtually all ANSI utility meters, registers, and recorders.They obtain their power directly from the handheld computer and it is controlled by the meter reading software.

The NEW iP503-222 ‘2S’ ANSI Optical Probes solve problems relating to mechanical wear-out due to the demanding environment under which probes are constantly subjected to. We address this problem using the most rugged mechanical and electrical design in the industry. These probes are designed with an almost indestructible Polycarbonate head that contains powerful magnets that ensure a good retention when attached to the meter’s optical port.They are also designed with a high-endurance polyurethane Straight cable that withstands the outside rugged environment.This claim is backed with an aggressive warranty and service policy.

Download Datasheet For: iP503-222 ‘2S’ ANSI Optical Probe

  • New ANSI compatible design
  • NEW Bi-Color LED Indicator for TX / RX communication signals
  • New Smaller Housing design made of Polycarbonate with Glass Fiber Reinforcement
  • Compatible with either ANSI C12.18-1996 or 2006
  • Designed for use with Honeywell Dolphin 9900 Handheld computers
  • Compatible with virtually all utility meters, registers and recorders
  • Power to Probe controlled by HH meter reading software
  • Rugged and long lasting Gray Polyurethane Straight cord (6 Feet or 2 Meters long)
  • Even lighter weight for reduced fatigue, wear and tear
  • Polycarbonate filter to enhance infrared (IR) communications
  • Powerful magnets in probe head for attaching to meter’s optical port
Physical size: Length 2.14”, Width 1.38”, Height 1.14”
Cable Type: Straight, Gray Polyurethane and Hytrel construction, Flexible and Rugged
Cable Length: 6 Feet or 2 meters long
Connector: DB17, 17-pin, D-Sub, Male
Weight: Complete assembly weighs a maximum of 5.6 ounces (0.35 lbs)
Finish: Probe Head Light Gray Polycarbonate
Reliability: One-Year (1) warranty for parts and labor
Signal Spec: Serial RS232
LED Indicator: TX (Red), RX (Green)
Compatibility: ANSI C12.18-1996 or 2006
Power Req: Operating supply voltage: +5V DC (from computer’s RS232 port)
Data Rate: Controlled by meter for OPTOCOM interface, 0 to 19,200 baud for Non-OPTOCOM meters
Optical: 880 nm bi-directional IR interface
Temperature: Operating -30º to 60º C; Storage -40º to +85º C
Ruggedness: Meets the requirements of a numbers of tests including those for Thermal Shock, Humidity, Water Resistance, RF Susceptibility, ESD, Drop,Random Vibration, Solar Radiation, Salt, Fog and Low Pressure.
Honeywell Dolphin 9900
ABB (Elster): 2550, 2650, All Alpha, Alpha T, A3, A1t, A1R, A1R+, 2430, others
Aptech/Robinton: LPR1, LPR2, LPR3, SR500, TR403, TR804
General Electric: KC901, KTC-901, KV, KV2, KV2-C, others
IUSA: Various
Siemens (Landis&Gyr):CTR101, CTR102, DC, DCR, DD, DG100, DT, DX, DXR, SD100,SM101, SM301, TMC101, LINC, DCRMA, DDMA, S4 family, AX series, RX series, MAXSYS 2410, MAXSYS 2510, Quad 4, others
Metricom: C
Nexus: 1260 Series, others
PSI: S100, S200, Quad 4
Pwr Measurement: ION 7000 series, 8000 series
Itron (Schlumbergẽr): Datastar, Fulcrum, MT100, MT200, Quantum, Q1000, Sentinel, Centron, Vectron
Synergistics: B40
Transdata: EMA, Mark V
Others: Not listed – to be added later
