iP501-224 (ANSI ONLY) (Honeywell Dolphin 99EX) Universal Optical Probe


OVERVIEW

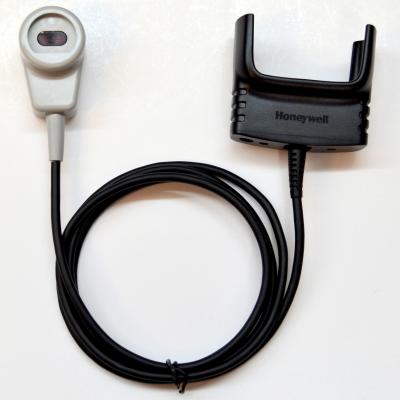

The NEW iP501-224 Universal Optical Probes are designed for reading and programming ANSI electrical power meters.

NOW, OUR NEW DESIGN INCORPORATES A SMALLER HOUSING FOR LIGHTER WEIGHT. In addition, the new smaller housing design is still rugged with its Polycarbonate Glass Fiber Reinforcement material.

These probes are configured for use with the Honeywell Dolphin 99EX handheld computers. Their optical circuitry supports ANSI C12.18-1996 or the latest communication protocol. They are compatible with virtually all ANSI utility meters, registers, and recorders. They obtain their power directly from the handheld computer and it is controlled by the meter reading software.

The NEW iP501-224 Optical Probes solve problems relating to mechanical wear-out due to the demanding environment under which probes are constantly subjected to. We address this problem using the most rugged mechanical and electrical design in the industry. These probes are designed with an almost indestructible Polycarbonate head that contains powerful magnets that ensure a good retention when attached to the meter’s optical port. This claim is backed with an aggressive warranty and service policy.

Download the datasheet for the iP501-224 Universal Optical Probe.

  • NEW ANSI COMPATIBLE DESIGN

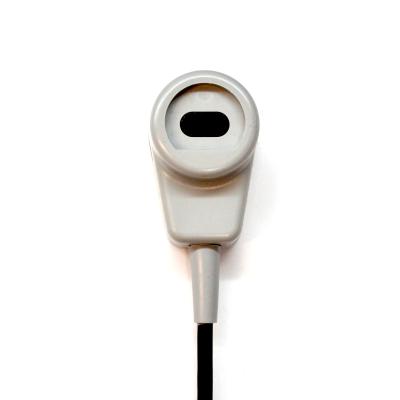

  • New smaller housing design made of Polycarbonate with Glass Fiber Reinforcement
  • Compatible with either ANSI C12.18-1996 or latest communication devices
  • Designed for use with Honeywell Dolphin 99EX Handheld computers
  • Compatible with virtually all ANSI utility meters, registers, and recorders
  • Power to probe controlled by HH meter reading software
  • Rugged with original manufacturer’s cup assembly cable
  • Even lighter weight for reduced fatigue, wear, and tear
  • Polycarbonate filter to enhance infrared (IR) communications
  • Powerful magnets in probe head for attaching to meter’s optical port
Physical size: Height 1.14”; Length 2.14”; Width 1.38”
Cable Type: Straight, Black PVC, Hytrel Construction, Cup Assembly
Cable Length: Approx. 5.5 feet long or 1.77 meters long

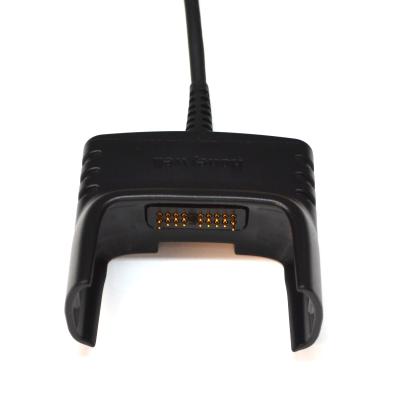

Connector: PDT 18-Pin connector
Weight: Complete assembly weighs a maximum of 5.6 ounces (0.35 lbs)
Finish: Probe Head has light gray polycarbonate
Reliability: One-year warranty for parts and labor
Signal Specifications: Serial RS232
Compatibility: ANSI C12-18,.18-1996 or latest
Power Requirements: Operating Supply Voltage: +5v DC (from computer RS232 port)
Data Rate: Controlled by meter for OPTOCOM interface, 0 to 19,200 baud for baud for Non-OPTOCOM meters.
Optical: 880 nm bi-directional IR interface
Temperature: Operating -30º to 60º C; Storage -40º to +85º C
Ruggedness: Meets the requirements of a numbers of tests including those for Thermal Shock, Humidity, Water Resistance, RF Susceptibility, ESD, Drop, Random Vibration, Solar Radiation, Salt, Fog and Low Pressure.

Honeywell Dolphin 99EX
ABB: 2550, 2650, All Alpha, Alpha T, A3, Alt, Alr-al, 2430, others
Aptech/Robinton: LPR1, LPR2, LPR3, SR500, TR403, TR804
General Electric: KV, KV2, KV2-C, others
Siemens (Landis&Gyr): CTR101, CTR102, DC, DCR, DD, DG100, DT, DX, DXR, SD100, SM101, SM301, TMC101, LINC, DCRMA, DDMA, S4 family, AX series, RX series, MAXSYS 2410, MAXSYS 2510, Quad 4, others
Metricom: C
PSI: S100, S200, Quad 4
Power Measurement: ION 7000 series, 8000 series
Itron (Schlumbergẽr): Datastar, Fulcrum, MT100, MT200, Quantum, Q1000, Sentinel, Centron, Vectron
Synergistics: B40
Transdata: EMA, Mark V
Others: Not listed – to be added
