iP501-222 (Honeywell Dolphin 9900) Universal Optical Probe


OVERVIEW

The NEW iP501-222 Universal Optical Probes are designed for reading and programming ANSI and IEC electrical power meters. NOW, THERE IS NO NEED TO CARRY 2 OPTICAL PROBES FOR READING OR PROGRAMMING METERS THAT EMPLOY EITHER TYPE OF OPTICAL PORTS. In addition, these new probes incorporate a smaller housing design that makes them even more light-weight but still rugged with their Polycarbonate Glass Fiber Reinforcement material.

These probes are configured for use with the Honeywell Dolphin 9900 handheld computers. Their optical circuitry supports ANSI C12.18-1996, IEC 62056-21 (1107) as well as General Electric OPTOCOM communications protocols by switching automatically from one to the other depending on the meter type being read. This design feature makes them universally compatible to read virtually all utility meters, registers, and recorders. They obtain their power directly from the handheld computer and it is controlled by the meter reading software.

For reading and programming ANSI meters, the optical probe is attached to the meter’s optical port in the standard position (cable facing downwards), and for IEC meters, the probe is attached to the meter’s optical port inverted (cable facing upwards).

The NEW iP501-222 Optical Probes solve problems relating to mechanical wear-out due to the demanding environment under which probes are constantly subjected to . We address this problem using the most rugged mechanical and electrical design in the industry. These probes are designed with an almost indestructible Polycarbonate head that contains powerful magnets that ensure a good retention when attached to the meter’s optical port. They are also designed with a high-endurance polyurethane molded cable 18” long that withstands the outside rugged environment. This claim is backed with an aggressive warranty and service policy.

Download datasheet iP501-222 DUAL (Honeywell Dolphin 9900) Universal Optical Probe

  • Compatible With Virtually All Utility Meters, Registers And Recorders That Employ ANSI C12.18-1996 And GE OPTOCOM Communications Protocols
  • Designed For Use With Honeywell Dolphin 9900 Handhelds
  • Rugged Design With Aluminum Housing
  • Molded Cable Construction With High-Endurance Polyurethane
  • Powerful Retention Magnets For Attaching To Meter’s Optical Port
  • Plycarbonate Filter To Enhance Infrared (IR) Communications
  • Operates Over Wide Temperature Range (-40° C To +85° C)
Physical size: Height 2.44”; Length 1.68”; Width 1.38”
Cable Type: Coiled, Polyurethane and Hytrel construction, Flexible and Rugged
Cable Length: 18” Coiled, extends to 10’

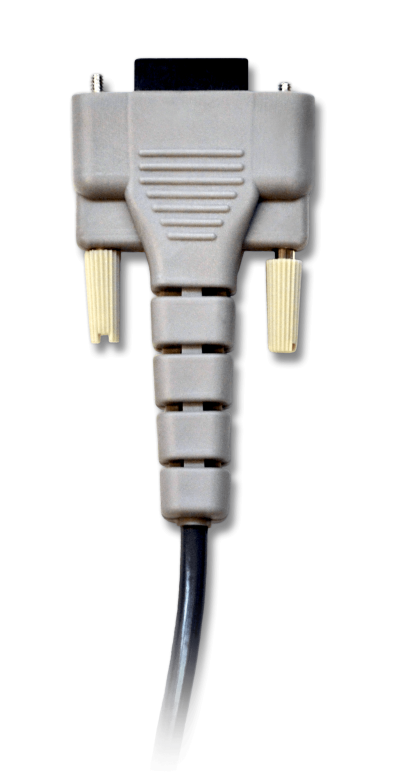

Connector: DB17, 17-pin, D-Sub, Male
Weight: Complete assembly weighs a maximum of 9 ounces (255 grams)
Finish: Probe Head has Hard Black Anodized Outer Coating per MIL-A 8625 Type
Reliability: Two-year (2) warranty for parts and labor
Signal Specifications: Serial RS232, EIA232D, V28, V32
Compatibility: ANSI C12-18, GE OPTOCOM
Power Requirements: Operating Supply Voltage: 4.5 to 6.0 VDC (from computer’s host port)
Data Rate: Controlled by meter for OPTOCOM interface, 0 to 19,200 baud for PTOCOM meters.
Optical: 880 nm bi-directional IR interface, ANSI C12.18-1996, GE OPTOCOM
Temperature: Operating -30º to 60º C; Storage -40º to +85º C
Ruggedness: Meets the requirements of a numbers of tests including those for Thermal Shock, Humidity, Water Resistance, RF Susceptibility, ESD, Drop, Random Vibration, Solar Radiation, Salt, Fog and Low Pressure.
Honeywell Dolphin 9900
ABB: 2550, 2650, All Alpha, Alpha T, A3, Alt, Alr-al, 2430, others
Aptech/Robinton: LPR1, LPR2, LPR3, SR500, TR403, TR804
General Electric: DR87, KM901, M90-AE, Phase 3, T80, T91, Tm80, TM81, TMR82, TM92, KC901, KTC-901, KV, KV2, KV2-C, others
Siemens (Landis&Gyr): CTR101, CTR102, DC, DCR, DD, DG100, DT, DX, DXR, SD100, SM101, SM301, TMC101, LINC, DCRMA, DDMA, S4 family, AX series, RX series, MAXSYS 2410, MAXSYS 2510, Quad 4
Metricom: C
PSI: S100, S200, Quad 4
Power Measurement: ION 7000 series, 8000 series
Itron (Schlumbergẽr): Datastar, Fulcrum, MT100, MT200, Quantum, Q1000, Sentinel, Centron, Vectron
Synergistics: B40
Transdata: EMA, Mark V
Others: Any other ANSI compatible meters
